Brushed DC motors from Buhler

---

Originally founded in 1855 as a clock factory in Germany, Bühler developed its first electric motor in 1955. Now, the company is a leading drive system supplier, with a catalogue of micro-drives, brushed and brushless DC motors, gear motors and encoders to suit a range of applications.

Bühler’s industrial brushed DC motors, which can cover power requirements up to 200W, are a suitable choice for applications ranging from building automation and transportation to agriculture and healthcare.

Choosing your brushed DC motor

Brushed motors provide several important benefits including:

• High starting torque
• Simple control over a wide speed range
• Torque and motor speed can be controlled by voltage
• Excellent power to weight ratio
• More cost effective compared to brushless

Explore the Bühler brushed DC micromotor range

DC motor 24 flat

Commutated with carbon brushes and housed with corrosion resistant steel, the 24 flat brushed DC motor from Bühler is designed with robustness in mind. At 35g in weight and a maximum diameter of 24mm, the 24 flat brushed DC motor from Bühler is ideal for the most compact of industrial spaces.

Furthermore, it offers a rated torque of 0.4 Ncm. no-load speed up to 18,000 rpm/min-1, and a wide temperature operating range from -10°C through to +70°C.

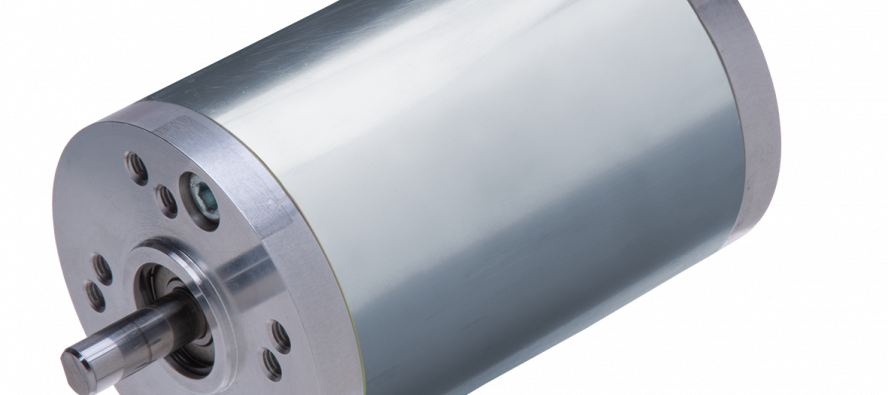

DC motor 63x95 201

With a twelve segment copper commutator, a rated torque of 18 Ncm and life expectancy of up to 4,000 hours, the 63x95 201 brushed DC motor from Buhler is highly powerful and reliable.

This high-performance micromotor has a maximum speed of 10,000 rpm/min-1,  low rotor inertia and an operating temperature range of -40°C to 70°C.

What’s more, this particular range of small DC motors can also be integrated within bMotion, an innovative modular drive platform designed by Bühler. Based on the platform‘s variety, the drive systems can be combined from already existing elements according to customer requirements.

In addition to its extensive range of standard brushed DC motors, Bühler can also supply customised variations of their products. These include alternative brushes for its brushed motors, as well as using different shafts and transmission ratio.

As the UK’s exclusive supplier of Bühler motors, EMS has immediate availability to its brushed DC micromotors. To place an order or discuss custom requirements, get in touch with a member of the team.
