Pincer Jaws

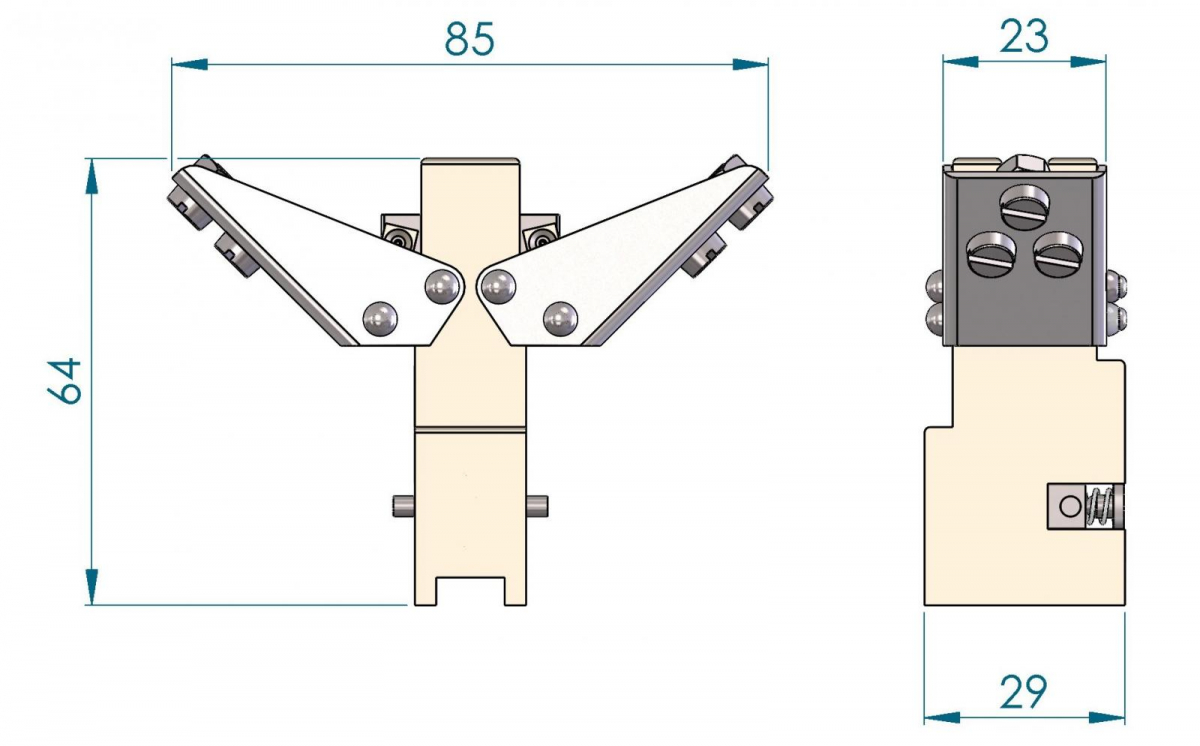

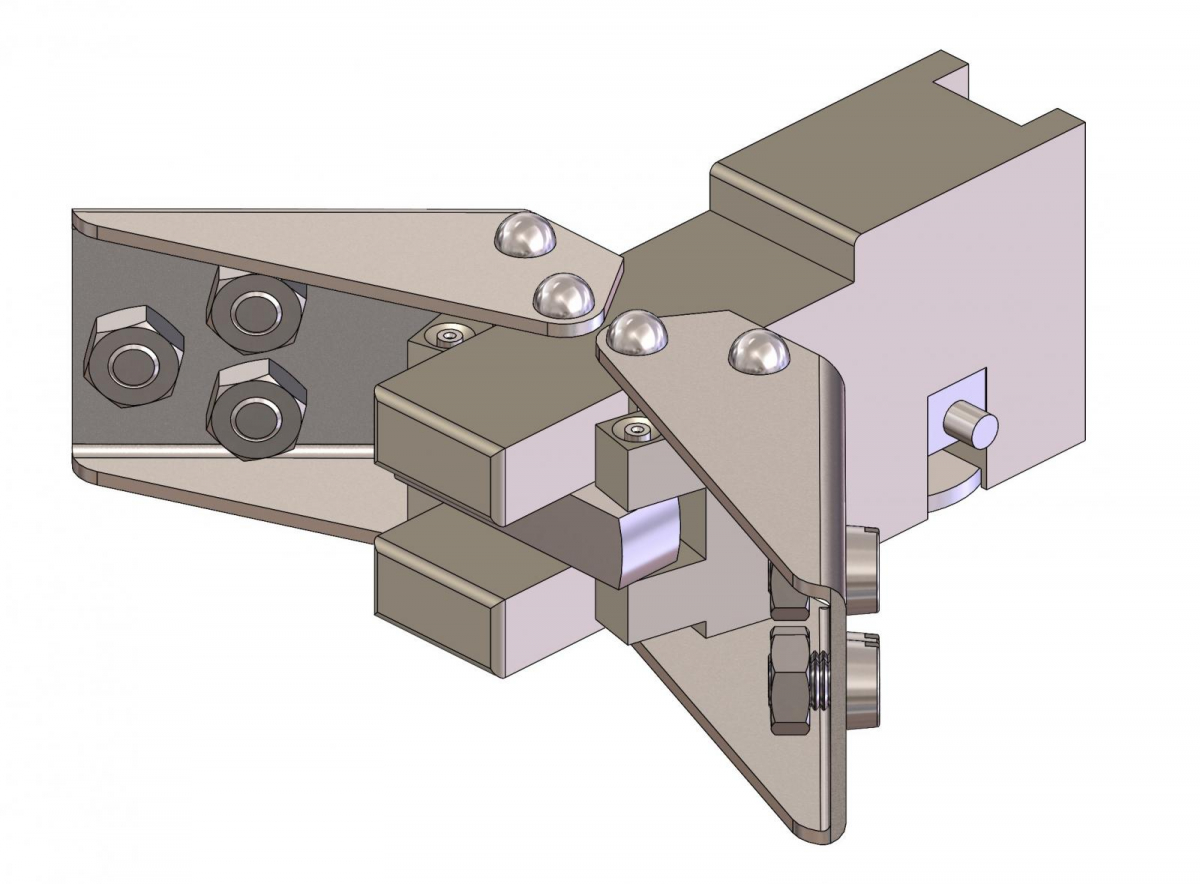

All of the currently available jaws are listed with part number and a representation of their closed position on the pincer action tong head. The assemblies are all shown upside down to allow a better view of the touching faces on jaws such as the tweezers and forceps.

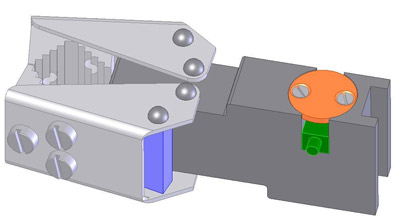

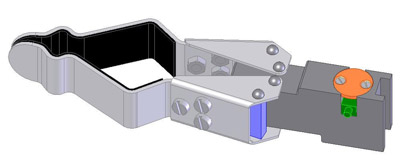

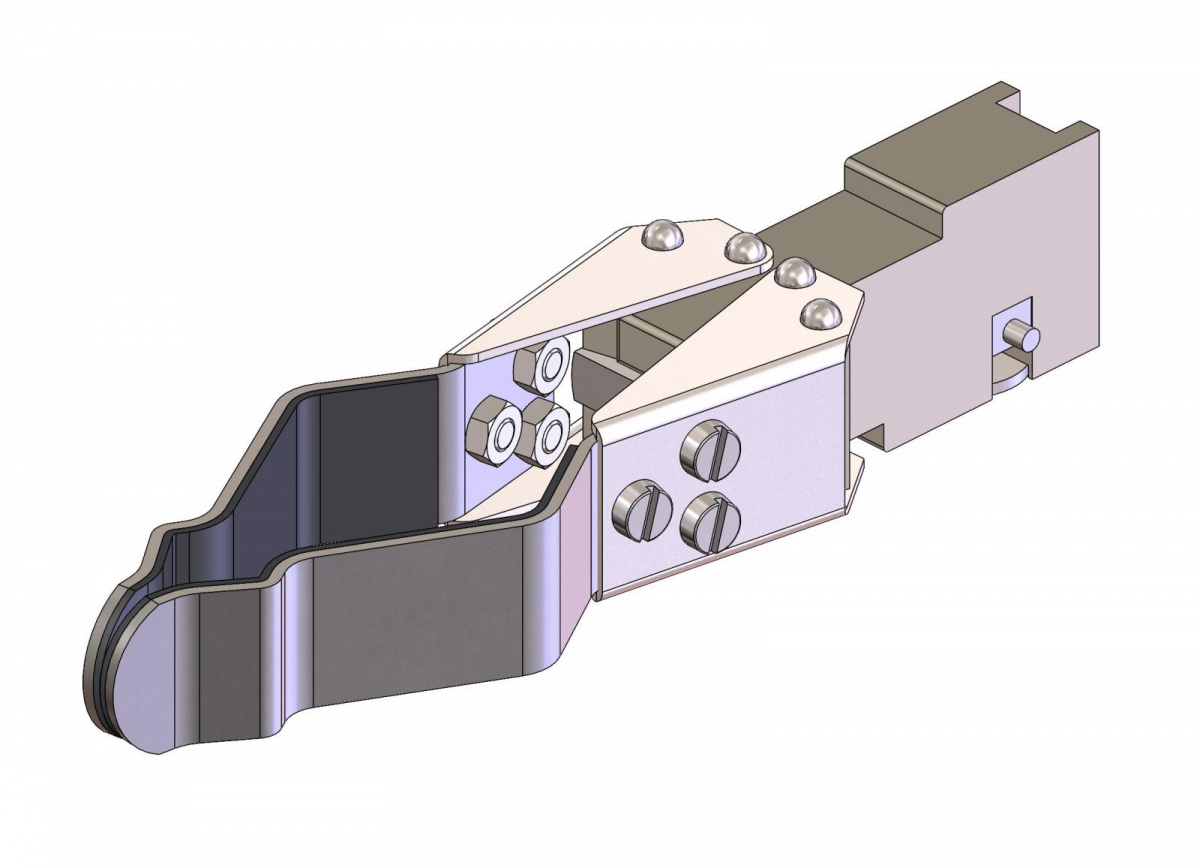

Dual Grip Jaw Part

No 44-28150

The small grip has approximate capacity of 8 to 25mm, the large grip 25 to 50mm. The jaws are rubber lined and fixed as shown.

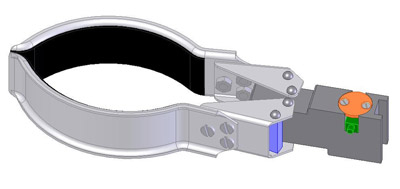

Large 250ml Beaker

Part No 44-28050

This jaw is designed to accept beakers of sizes 250ml to 1000ml. The jaws are rubber lined to limit slippage and bolted to the outer faces of the pincer head.

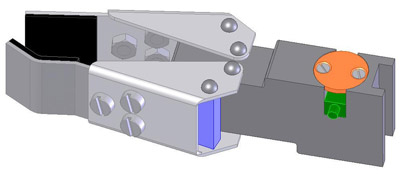

Small 50ml Beaker

Part No 44-28100

This jaw design is for 50ml beakers or cans etc up to a diameter of 25mm. The jaws are rubber lined.

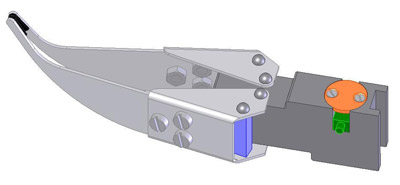

Single Grip

Part No 44-28200

This jaw design is a general purpose gripping jaw. The jaw length is 3” before insertion into the pincer jaw and it is just over 20mm wide. The angled part is at 30° and as with others it is rubber lined.

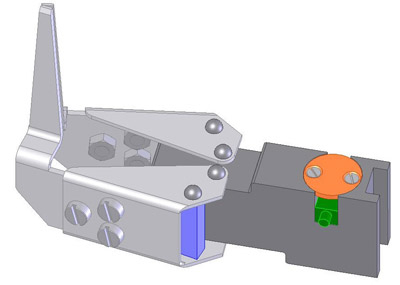

Plain Forceps

Part No 44-28250

These plain forceps have sharp pointed ends that are inclined toward each other at an included angle of 8°. The jaws are 70mm long and are not rubber lined.

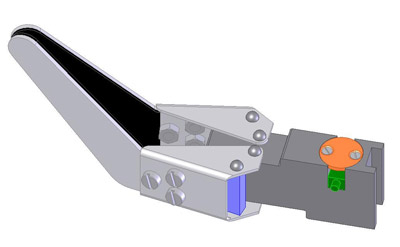

Offset

Part No 44-28400

The Offset type jaw has a 50° blade offset from the pincer head. The blade has a tip radius of 6mm and is rubber lined.

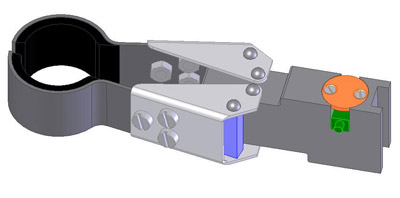

Stopcock-open

Part No 44-28450

The stopcock jaws have a rubber lined slot of approximate width 8mm.

Micro-pipette

Part No 44-28500
Part N° 44-28550

The micropipette jaw comes with two different shape jaws, the flat (28550) and the shaped (28500) jaw. These are both available separately and can be used in any combination.

Tweezer Jaw

Part No 44-28600

The Tweezer jaws have a 50mm blade length, which tapers from 9mm down to 3mm. These jaws are not rubber lined.

Vice Jaw

Part No 44-28650

The Vice jaws are tapped, and fixed via the three bolts in each of the pincer head jaws. There is no rubber lining so care should be taken to avoid damage.

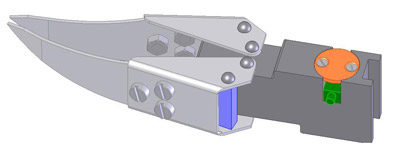

Long Nose Forcep Jaw

Part No 44-28300

Forcep jaw with long nose for extra reach in confined spaces. The blade is 76mm long at an angle of 35° from the barrel axis. The blades are also angled at 4° inward to ensure the tips meet in a more precise manner. These jaws are not rubber lined

Short Nose Forcep Jaw

Part No 44-28350

Forcep jaw with long rubber tipped ends. These jaws are very similar to the long nose jaws except the ends are not rubber tipped and are not angled.
